Allan Block Vertical, Classic, Junior, Lite Stone, Junior Lite, Cap Stone, Corner/End

from $11.50 now only $10.10 incl GST

Order 24-7 by using our freight calculation. Hassle free delivered to your home!

Order Here:

CalculatPaving Calculator
X

Please allow an extra 6% on your order for possible cutting, breakages or freight damage.

You will need: of your selected tile size – if you add an extra 6%.

The Allan Block® success began three decades ago with the introduction of their patented segmental retaining wall product – The Original Allan Block.

The success story continues with the development of creative and innovative construction products, aiming to revolutionise the way the world builds.

The Allan Block stacks beautifully and creates a smooth and fluid finish for every wall, bringing a refined look of classic natural beauty to any landscape. It is easy to install, durable, cost-effective and, best of all, it looks great.

Expect high performance with the first-ever segmental retaining wall system that has conducted full-scale seismic testing.

Important information

  • Engineering advice should be sought for walls exceeding 900mm, or for retaining walls supporting an additional load, eg. driveways, buildings or slopes etc.
  • Also, check with your local council for requirements and regulations in your particular area.

Allan Block® is a Registered Trademark of Allan Block Corporation registered in the United States

Benefits & Features

  • Easy installation
  • Patterned retaining walls
  • Fully engineered
  • Versatile
  • Durable
  • Attractive
  • Environmentally safe
  • Construction methodology
  • Seismic performance

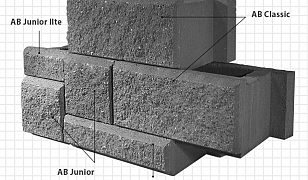

Allan Block Classic
Dimension: 435mm L x 300mm W x 200mm H
Coverage: 11.5 blocks per m2
Pallet: 40 blocks per pallet
Setback: 6 degrees from Vertical
Weight: 32.5 Kg

Allan Block Vertical
Dimension: 435mm L x 300mm W x 200mm H
Coverage: 11.5 blocks per m2
Pallet: 40 blocks per pallet
Setback: 3 degrees from Vertical
Weight: 32.5 Kg

Allan Block Junior
Dimension: 216mm L x 240mm W x 200mm H
Coverage: 23.15 blocks per m2
Pallet: 100 blocks per pallet
Setback: 6 degrees from Vertical
Weight: 15 Kg

Allan Block Junior Lite
Dimension: 216mm L x 240mm W x 100mm H
Coverage: 46.3 blocks per m2
Pallet: 200 blocks per pallet
Setback: 6 degrees from Vertical
Weight: 8 Kg


Allan Block Lite Stone
Dimension: 435mm L x 300mm W x 100mm H
Coverage: 23 blocks per m2
Pallet: 80 blocks per pallet
Setback: 6 degrees from Vertical
Weight: 16 Kg


Allan Block End/Corner Block
Dimension: 400mm L x 200mm W x 200mm H
Coverage: 12.5 blocks per m2
Pallet: 60 blocks per pallet (30 left blocks and 30 right blocks)
Setback: 6 degrees from Vertical
Weight: 28 Kg


Allan Block Cap Stone
Dimension: 433mm L x 260mm W x 100mm H
Coverage: 2.3 blocks per linear metre
Pallet: 72 blocks per pallet
Setback: 0 degrees from Vertical
Weight: 22.5 Kg



Talk to us about your project - we have have many options available.

DO YOU HAVE A QUESTION
OR NEED A QUOTE
CALL 0508 64 44 89 (MIGHTY)
EMAIL info@mightyoutdoor.co.nz




We are your one-stop paving shop.
Buy direct and SAVE!

Smart way to order, no time wasting, no queues, no petrol cost and no traffic jams!


PLEASE ALLOW AN EXTRA 6% IN YOUR ORDER FOR POSSIBLE CUTTING, BREAKAGES OR FREIGHT DAMAGE.

Purchase Options

Colour W L H
BOW-RockSalt 435mm 300mm 200mm
BOW-RockSalt 435mm 300mm 200mm
BOW-RockSalt 240mm 216mm 200mm
BOW-RockSalt 240mm 216mm 100mm
BOW-RockSalt 300mm 435mm 100mm
BOW-RockSalt 200mm 400mm 200mm
BOW-RockSalt 200mm 400mm 200mm
BOW-IronSand 300mm 435mm 200mm
BOW-IronSand 300mm 435mm 200mm
BOW-IronSand 240mm 216mm 200mm
BOW-IronSand 240mm 216mm 100mm
BOW-IronSand 300mm 435mm 100mm
BOW-IronSand 200mm 400mm 200mm
BOW-IronSand 200mm 400mm 200mm
BOW-RockSalt 433mm 260mm 100mm
BOW-IronSand 433mm 260mm 100mm

Benefits & Features

  • Easy installation
  • Patterned retaining walls
  • Fully engineered
  • Versatile
  • Durable
  • Attractive
  • Environmentally safe
  • Construction methodology
  • Seismic performance

AB Classic
Dimension: 435mm L x 300mm W x 200mm H
Coverage: 11.5 blocks per m2
Pallet: 40 blocks per pallet
Setback: 6 degrees from Vertical
Weight: 32.5 Kg

AB Vertical
Dimension: 435mm L x 300mm W x 200mm H
Coverage: 11.5 blocks per m2
Pallet: 40 blocks per pallet
Setback: 3 degrees from Vertical
Weight: 32.5 Kg

AB Junior
Dimension: 216mm L x 240mm W x 200mm H
Coverage: 23.15 blocks per m2
Pallet: 100 blocks per pallet
Setback: 6 degrees from Vertical
Weight: 15 Kg

AB Junior Lite
Dimension: 216mm L x 240mm W x 100mm H
Coverage: 46.3 blocks per m2
Pallet: 200 blocks per pallet
Setback: 6 degrees from Vertical
Weight: 8 Kg


AB Lite Stone
Dimension: 435mm L x 300mm W x 100mm H
Coverage: 23 blocks per m2
Pallet: 80 blocks per pallet
Setback: 6 degrees from Vertical
Weight: 16 Kg


AB End/Corner Block
Dimension: 400mm L x 200mm W x 200mm H
Coverage: 12.5 blocks per m2
Pallet: 60 blocks per pallet (30 left blocks and 30 right blocks)
Setback: 6 degrees from Vertical
Weight: 28 Kg


AB Cap Stone
Dimension: 433mm L x 260mm W x 100mm H
Coverage: 2.3 blocks per linear metre
Pallet: 72 blocks per pallet
Setback: 0 degrees from Vertical
Weight: 22.5 Kg
